Track Plan Level 3

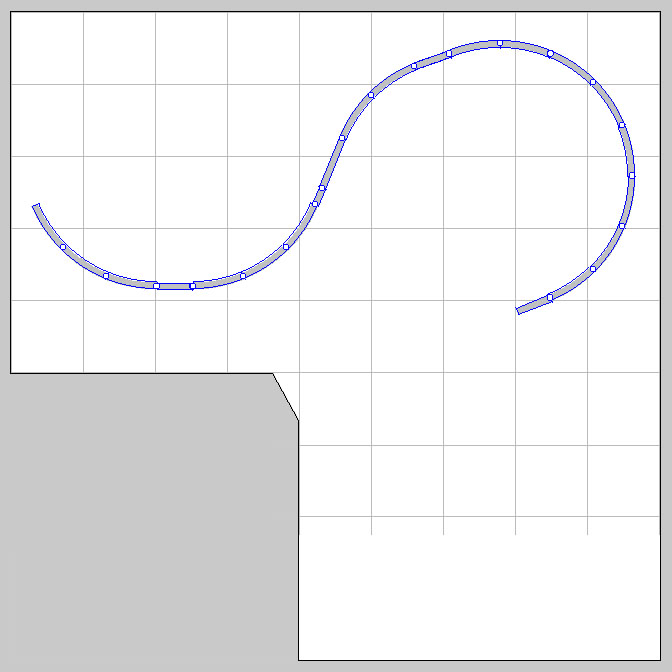

The track on this level is a grade of about 1.5% that extends from 4 inches to 6 inches above the bench grid. The left half of this track is hidden in a tunnel as it passes under the upper level track (colored magenta) and the yard tracks (colored black). It also passes through a short tunnel under the yard tracks just before the wye. This track is electrically isolated for occupancy detection.
